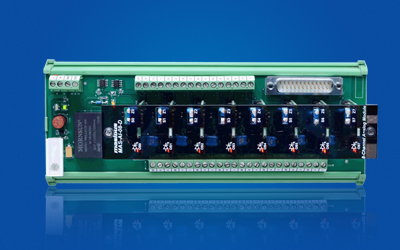

8 Channel Analog Input Module MAS-AI-08-D

8 Channel Analog Input Module MAS-AI-08-D

Masibus Analog Input Field Interface Board has 8 channels that accepts various types of current/voltage signals and converts them to isolated current/voltage signals. It is compact universal DIN rail mounted with labeled input and output connections. Each channel zero and span calibration is adjustable by multi-turn potentiometers. It can be used as PLC/DCS Interfacing Module.
It is compatible with both 2 wire and 4 wire transmitters and has built-in transmitter power supply to power 2 Wire field transmitters.
Offers excellent accuracy and stability for reliable operation in hostile environments and offers full 3 port isolation between input, output and power supply.

No of channels: 8 No of Channels
Input & Output Type: DC Volt/Current (Factory Set)
Input Indication: Input over/under range Indication (1-5V/4-20mAonly)
I/P Connection: PCB Terminal Block accepts 2.5mm2 conductor size
Accuracy: 0.1% of Span
Output Terminals: PCB Terminal Block or 25 pin D-Type connector
Power Supply
Power Supply: 24VDC ±10%
Power Supply Protection: By Fuse
Power Supply Status Indication: Healthy and Fault Indication
1.5KV AC Input to Power, Channel to Channel, Input to Output and Output to Power
Dimension (mm): 225(L) x 90(W) x 90(D)
Weight (gms): Appx. 450 gms
  • Field interface device
  • Isolation of field signals
  • Translation of signals
  • Field Interface for PLC/DCS/SCADA systems
  • Impedance matching of transmitters and receiver instruments
  • Eliminate Ground Loop problems
  • Protect Expensive control systems against Field Faults
  • Eliminate Common Mode Voltages
  • Power Stations
  • Cement
  • Waste Water Treatment Plants
  • Sugar
  • Pulp & Paper
