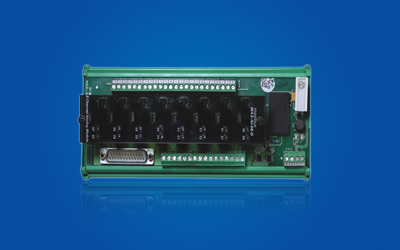

8 Channel Analog Output Module MAS-AO-08-D

8 Channel Analog Output Module MAS-AO-08-D

Masibus Analog Output Field Interface Board has 8 channels that accepts various types of current/voltage signals and converts them to isolated current/voltage signals. It is compact universal DIN rail mounted with labeled input and output connections. Independent zero & span adjustment for each channel is possible.

Offers excellent accuracy and stability for reliable operation in hostile environments and offers full 3 port isolation between input, output and power supply.

No of channels: 8 No of Channels
Input & Output Type: DC Volt/Current (Factory Set)
Input Indication: Input over/under range Indication (1-5V/4-20mAonly)
I/P Connection: PCB Terminal Block accepts 2.5mm2 conductor size
Accuracy: 0.1% of Span
Output Terminals: PCB Terminal Block or 25 pin D-Type connector
Power Supply
Power Supply: 24VDC ±10%
Power Supply Protection: By Fuse
Power Supply Status Indication: Healthy and Fault Indication
1.5KV AC Input to Power, Channel to Channel, Input to Output and Output to Power
Dimension (mm): 225(L) x 90(W) x 90(D)
Weight (gms): Appx. 400 gms
  • Field interface device
  • Isolation of field signals
  • Translation of signals
  • Field Interface for PLC/DCS/SCADA systems
  • Protect expensive control systems against field faults
  • Metal
  • Cement
  • Food
  • Pharma
  • Power
  • Oil & Gas
  • Water
