Flame Proof Loop Powered Indicator LPI-1-XP

Flame Proof Loop Powered Indicator LPI-1-XP

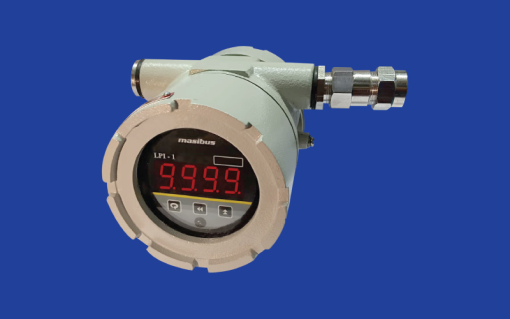

Masibus LPI-1-XP Explosion Proof series Loop powered Indicator is available in two mounting types; Wall mount and 2” Pipe Mount, having LED display. Both models are two-wire loop powered and need no Auxiliary power. The voltage drop across the loop is limited to 5V maximum.
Loop powered Indicator is housed in compact Ex-Proof enclosure suitable for Gas Group IIA/IIB, Zone 1 & 2, the enclosure is also IP-65 certified. Both models deliver an accuracy of 0.1% of FS combined with a low temperature drift.
The indication range can be easily scaled by 3 pushbuttons inside, the scale can be set to any range between -1999 to 9999 for 4-20mA input, and reverse scaling is also possible.
The display is factory oriented for horizontal or vertical mounting but can be also reoriented in the field.

  • 4-Digit LED or LCD Display options
  • Ex-proof protection for Gas groups IIA & lIB, Zone-1 & 2
  • IP65 certified
  • Loop Powered with low voltage drop
  • Reverse scaling for indication range
  • Square root extraction
  • Accuracy 0.1% of FS
  • Wall or Pipe mounting options

For hazardous area Loop powered applications in industries like

  • Pharma
  • Oil & gas
  • Petrochemical
  • Mining
  • Chemicals
  • Fertilizer
  • Steel
