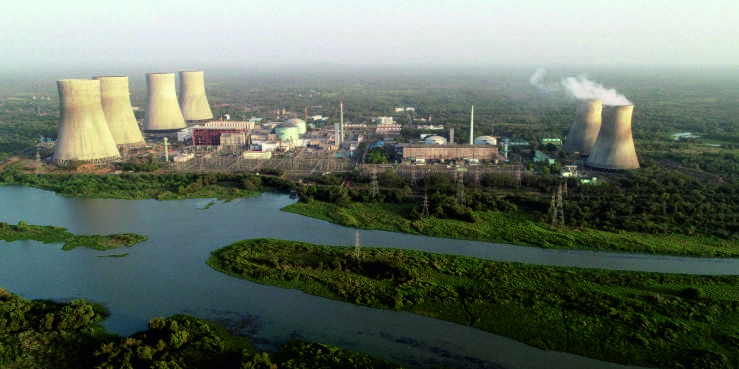

220MW Generator & 400/220KV Transmission Lines Fault Analysis

220MW Generator & 400/220KV Transmission Lines Fault Analysis

Customer Requirement

  • Disturbance fault recording system for 220MW generator & 400/220KV transmission lines fault analysis
  • When any generator & line is tripped, to find the cause and to fill RCA report i.e. Root cause analysis report
  • Need information – At what time fault occurred, status of digital channels, status of analog channels, condition of generator/lines etc.
  • Monitoring of system protection performance
  • Recording of system events
  • The vital evidence that tells what happens during the fault is found in the pre trigger, event duration, and post fault information of the captured record
  • Increases user efficiency when performing RCAs and trip analysis

Systems and Tools

  • Disturbance recorder
  • Configuration & fault analysis software
  • Computer system
  • Communication cables & related accessories
  • Fully wired panel

Project Scope

  • Supply, commissioning & installation of disturbance recorder with configuration software and communication cables
