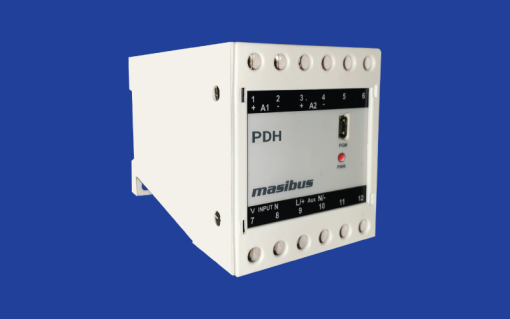

PDH Programmable Frequency Transducer
PDH Programmable Frequency Transducer
The Masibus PDH frequency transducer measures the linefrequency of both sine wave and distorted waveforms of nominal input voltage with a fundamental frequency and converts this frequency input into a load-independent DC current or voltage output signal, with the output proportional to the measured frequency.
It is equipped with two load-independent, galvanically-isolated analogue outputs that can be configured for different input range and output curves.
Frequency transducers are having its application to interface with Controllers, Data-Loggers, PLC’s, Analog / Digital Indicators, RTUs.
It provides accuracy class 0.2 with up to 3 KV isolation. Our Frequency transducer performs with exceptional accuracy, repeatability and reliability. In addition to being most accurate, our transducer are equally preferred by OEMs/ end users to other makes for their excellent stability over a long period of operation.
Features
- High accuracy class 0.2
- Confirms to IEC 60688
- Site-configurable inputs ranges & outputs
- Onsite selectable output type (DC current / DC voltage)
- Load-independent accuracy on all outputs
- Available in single or dual output type
- Programming port for easy configuration
- Fast response
- Excellent long term stability
- Good isolation & impulse resistance
- Transient protected
- DIN-Rail mounting
Applications
- Generating/transmission distribution stations
- Building management
- Load dispatch center
- Power equipment’s OEMs
- HT/LT panels
- Substation automation
- SCADA
- Local and central monitoring systems
- Energy management system
