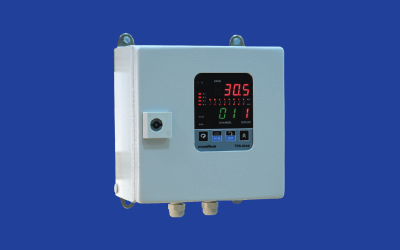

The TPR-8208 offers 4 / 8 channel monitoring with advanced functions and full programming features with touch sense keys in IP65 weather proof protection for monitoring process values and protection application.
The TPR-8208 is developed to safely operate medium voltage cast resin/dry type transformers at 70 °C extreme temperature. It is appropriate for installation in marshalling boxes and control rooms.
• Online Monitoring, Data Logging And Reporting • Real Time Trend/ Historic Trend Display • Auto Discovery Of Masibus Devices • Auto Tag Generation Of Masibus Devices • Supports Third Party Modbus (RS485/ TCP-IP) Devices • Multiple Pre–Built Report Options • Audit Trials and Signature Manifestations
• Temper Proof Data Management
IIoT Gateway with Cloud Connectivity, Connect Modbus device data to cloud through MQTT broker, provides encrypted communication using TLS / SSL protocols, Inbuilt RTC & memory to retain the data in-case of network failure.
Enhanced Data Acquisition Scanner Masibus 85XX⁺ has 8 Relay and 24 OC outputs which can be freely mapped as alarm/trip or control set point. 85XX⁺ comes with one RS485 Port as standard, a second RS485 Port, Ethernet Port & Profibus DP Port are to enhance communication.
Masibus Multi-Channel Scanner & Ex-Proof scanner 8208-XP is the most compact multi-point scanner to give full programmability and ease of operation. 8208-XP has built-in Isolated RS485 serial communication port with Modbus RTU protocol.
Masibus 8208-XP has Ex-proof protection for Gas groups IIA & lIB, IP65, Zone-1 (optional: IIC Group)
Masibus Model 8040- 128 Channel Data Logger/DAQ Module is a high performance Data Acquisition & Data logging Device, designed to work as a standalone unit or with PC Interface. The model has 2 serial ports dedicated for user interface, enabled with Modbus RTU protocol, one additional serial port is provided for operator terminal or HMI interface.
4 Channel Scanner / Protection Relay Masibus model 8204 offers multi-channel monitoring with advanced functions and simple programming features in very compact 1/8 DIN size for monitoring process values and protection application. 8204 has flexible configuration option for 4 channels accepting universal input & 4 relays to serve various application.
Masibus 8208 8-Channel Scanner / Protection Relay offers multi-channel monitoring with advanced functions and simple programming features in very compact 1/4 DIN size for monitoring process values and protection applications. 8208 has built-in Isolated RS485 serial communication port with Modbus RTU protocol.
Masibus Weather Proof Scanner 8208-IP offers 4 / 8 channel monitoring with advanced functions and full programming features with touch sense keys for monitoring process values and protection applications. The unit has separate Numeric displays for Channel No., Group and Process Value.
Masibus String Box Monitor precisely measures string DC currents using DC shunts, Voltage and RTD sensors for temperature of solar PV system. Continuous monitoring of solar PV DC side helps detect loss of power and/ or efficiency and immediate rectification of faults.
Masibus’ MINT I/O series is the most cost effective Field Interface module for Smart Systems whether it is DAS, SCADA, PLC or DCS. The MINT I/Os are available in Universal 8 channel Analog Input, 8 channel Analog Output, 16 channel Digital Input and 16 channel Digital Output.
The MINT CP is a Communication Processor which connects MINT-IOs and Serial Modbus-RTU Devices to a Modnet Ethernet Network. MINTPLUS configuration Software is available to configure the MINT CP fully with IP address, subnet mask, Modnet parameters and Serial Modbus master parameters.
The HT16u Humidity-Temperature Smart Logger is ideal for monitoring humidity and temperature of storage areas, clean rooms and buildings in Pharma and other industries. The HT16u is compact, easy to setup, accurate and most cost effective.
Wireless Clock System MC-2 Master Clock and DDU-24/26, DDU-44/46 Slave Clock is a perfect solution for a wide range of applications where accurate, synchronized time is required over wireless. It displays parameters like Time and Date.
SMART-HT software is a windows based desktop software designed for configuring HT16u Humidity-Temperature Smart Loggers, enabling user convenient view, analyze & archive data collected from Logger through USB Port. User will have to purchase the USB Dongle Key for License to export the data.
• Online Monitoring, Data Logging And Reporting • Real Time Trend/ Historic Trend Display • Auto Discovery Of Masibus Devices • Auto Tag Generation Of Masibus Devices • Supports Third Party Modbus (RS485/ TCP-IP) Devices • Multiple Pre–Built Report Options • Audit Trials and Signature Manifestations
• Temper Proof Data Management
